Coffee grinders

TRANQUILO-TRONTRANQUILO IIBRASILLUXO

ON DEMAND COLLECTION

The perfect grinding

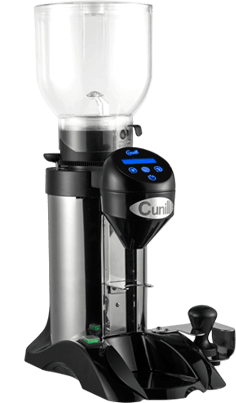

TRANQUILO-TRON        kenia-mini-trans         jamaica                luxomatic-mini-trans

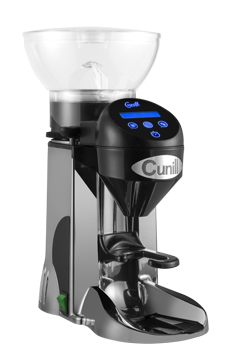

REFERENCE TRANQUILO

  • Voltage: 230V / 220V / 110V
  • Frequency: 50Hz / 60Hz
  • Phases: 1(monophase)
  • Rpm: 1.300 / 1.600
  • Current: 1,4A / 3A
  • Capacitor: 12nf / 40nf
  • Power: 0,12Hp / 275W
  • Protection rating: IP21
  • Motor supplied with thermal protector.
  • Maximum operating time: 30min.
  • Tempered steel grinding wheel (62HRc) 60mm diameter
  • Lifespan of grinding wheels: 500Kg
  • Hopper capacity: 0,5Kg (Optional 1Kg)
  • Multi-language touch screen
  • Selection for 1 or 2 freshly ground coffees or continuous grinding
  • Total or partial coffee counter
  • Assistant timer grinding point
  • Dimensions width x length x height: 170x340x410mm
  • Weight: 8Kg
  • Air noise: 77dB

THE ABS COLLECTION, design and functionality.

The right combination of strength, durability and harmony of colours.

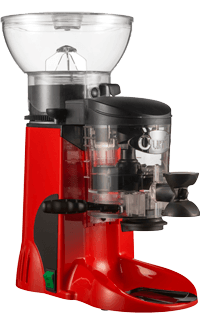

TRANQUILO II ABS

REFERENCE TRANQUILO II

  • Voltage: 230V / 220V / 110V
  • Frequency: 50Hz / 60Hz
  • Phases: 1(monophase)
  • Rpm: 1.300 / 1.600
  • Current: 1,15A / 2,47A
  • Capacitor: 10nf / 40nf
  • Power: 0,10Hp / 270W
  • Protection rating: IP21
  • Motor supplied with thermal protector.
  • Maximum operating time: 30min.
  • Tempered steel grinding wheel (62HRc) 60mm diameter
  • Lifespan of grinding wheels: 500 Kg
  • Hopper capacity: 0,5Kg
  • Doser capacity: 300gr
  • Doser regulation: 5/12gr
  • Doser lever: right/left
  • Stop/start standard version: manual start
  • Dimensions width x length x height: 170x340x410mm
  • Weight: 6Kg
  • Air noise: 77dB

REFERENCE BRASIL

  • Voltage: 230V / 220V / 110V
  • Frequency: 50Hz / 60Hz
  • Phases: 1(monophase)
  • Rpm: 1.300 / 1.600
  • Current: 1,4A / 3A
  • Capacitor: 9nf / 40nf
  • Power: 0,12Hp / 275W
  • Protection rating: IP21
  • Motor supplied with thermal protector.
  • Maximum operating time: 30min.
  • Tempered steel grinding wheel (62HRc) 60mm diameter
  • Lifespan of grinding wheels:500Kg
  • Hopper capacity: 1Kg
  • Doser capacity: 300gr
  • Doser regulation: 5/12gr
  • Doser lever: right/left
  • Stop/start standard version: manual
  • Optional: automatic start
  • Dimensions width x length x height: 210x380x470mm
  • Weight: 8Kg
  • Air noise: 77dB

REFERENCIA LUXO 400W

  • Voltage: 230V / 220V / 110V
  • Frequency: 50Hz / 60Hz
  • Phases: 1(monophase)
  • Rpm: 1.300 / 1.600
  • Current: 1,5A / 3,5A
  • Capacitor:: 8nf / 40nf
  • Power: 0,25Hp / 400W
  • Protection rating: IP21
  • Motor supplied with thermal protector.
  • Maximum operating time: 30 min.
  • Tempered steel millstone (62HRc) 60mm diameter
  • Lifespan of millstones: 500Kg
  • Hopper capacity: 1kg
  • Hopper option: 2Kg
  • Doser capacity: 600gr
  • Doser regulation: 5/12gr
  • Doser lever: right/left
  • Stop/start standard version: automatic
  • Dimensions width x length x height: 285x405x625mm
  • Weight: 15,5Kg
  • Air noise: 55dB






NUOVA SIMONELLI

Nouva Simonell1Nouva Simonell2Nouva Simonell3Nouva Simonell4
miloi_alesis_nuona_simonelli_1
Μύλος αλέσεως καφέ espresso
Με ατσάλινα μαχαίρια διαμέτρου 50cm.
Διαστάσεις: 14x21x42 cm
Ισχύς 150Watt 220v
Διατίθεται και με αυτόματη δόση του καφέ
Χρώματα: Μαύρο,silver και κόκκινο
miloi_alesis_nuona_simonelli_2
Μύλος αλέσεως καφέ espresso επαγγελματικός.
Εργοστάσιο: Nuova Simonelli
Με δοσομετρητή και μικρομέτρηση.
Ατσάλινα μαχαίρια κωνικά διαμέτρου 75mm.
Δυνατότητα αλέσεως 10kg/ώρα
Ισχύς: 330Watt 220volt
Διαστάσεις : 23x35x55cm
Χρώματα  μαύρο, silver και κόκκινο
miloi_alesis_nuona_simonelli_3
Μύλος αλέσεως καφέ espresso επαγγελματικός.
Εργοστάσιο: Nuova Simonelli
Με δοσομετρητή και μικρομέτρηση.
Ατσάλινα μαχαίρια διαμέτρου 60mm.
Δυνατότητα αλέσεως 4kg/ώρα
Ισχύς: 290Watt 220volt
Διαστάσεις: 19x29x59cm
Χρώματα μαύρο και silver
miloi_alesis_nuona_simonelli_4
Μύλος αλέσεως καφέ espresso επαγγελματικός.
Εργοστάσιο: Nuova Simonelli
Υπεραυτόματος με δυνατότητα ρύθμισης 3 προγραμματισμένων δόσεων και μικρομέτρηση.
Διαθέτει οθόνη LCD
Ατσάλινα μαχαίρια διαμέτρου 75mm.
Δυνατότητα αλέσεως περισσότερα από 18kg/ώρα
Ισχύς : 800Watt 220volt
Διαστάσεις : 19x50x60cm

MMD

MMDTitle 2Title 3
mmd MMD

Stepless micrometrical grinding adjustment.
Available with:
• Manual switch
• Automatic start
• Timer

Technical Features
– Power 350 W
– Grinding Blades Ø 64 mm
– Grinding Balde speed  1400/min (50 Hz) – 1600/ min (60 Hz)
– Hopper capacity 1,2 Kg
– Ground-coffee container capacity 280 g
– Dose adjustment 5,5 – 9 g
– Net Weight 13 Kg

Product Range
—————————————————————————
M MD M – Manual Coffee Grinder  – Blades Ø 64
Single phase  – 230 Volt – 50/60 Hz – Three phase – 400 Volt – 50/60 Hz
M MD T – Timer Coffee Grinder  – Blades Ø 64
Single phase  – 230 Volt – 50/60 Hz – Three phase – 400 Volt – 50/60 Hz
Single phase  – 110 Volt – 60 Hz – ETL APPROVED
M MD A – Automatic Coffee Grinder  – Blades Ø 64
Single phase  – 230 Volt – 50/60 Hz – Three phase – 400 Volt – 50/60 Hz
Single phase  – 110 Volt – 60 Hz – ETL APPROVED
——————————————————————————————
M MD DR – Doserless Coffee Grinder  – Blades Ø 64
Single phase  – 230 Volt – 50/60 Hz – Three phase – 400 Volt – 50/60 Hz
Single phase  – 110 Volt – 60 Hz – ETL APPROVED
——————————————————————————————
M MD MM – Manual Coffee Grinder  – Blades Ø 83
Single phase  – 230 Volt – 50/60 Hz – Three phase – 400 Volt – 50/60 Hz
M MD MT – Timer Coffee Grinder  – Blades Ø 83
Single phase  – 230 Volt – 50/60 Hz – Three phase – 400 Volt – 50/60 Hz
Single phase  – 110 Volt – 60 Hz – ETL APPROVED
M MD MA – Automatic Coffee Grinder  – Blades Ø 83
Single phase  – 230 Volt – 50/60 Hz – Three phase – 400 Volt – 50/60 Hz
Single phase  – 110 Volt – 60 Hz – ETL APPROVED
——————————————————————————————
M MD MDR – Doserless Coffee Grinder  – Blades Ø 83
Single phase  – 230 Volt – 50/60 Hz – Three phase – 400 Volt – 50/60 Hz
Single phase  – 110 Volt – 60 Hz – ETL APPROVED
——————————————————————————————
M 12 A – Automatic Coffee Grinder  – Blades Ø 64
Single phase  – 230 Volt – 50/60 Hz
Single phase  – 110 Volt – 60 Hz – ETL APPROVED
——————————————————————————————
M MD 6 – Manual Coffee Grinder  – Blades Ø 50
Single phase  – 230 / 110 Volt – 50/60 Hz
M MD 6 inox – Manual Coffee Grinder  – Blades Ø 50
Single phase  – 230 / 110 Volt – 50/60 Hz
M 14 A – Automatic Coffee Grinder  – Blades Ø 63
Single phase  – 230 / 110 Volt – 50/60 Hz
—————————————————————————

MMDL

Stepless micrometrical grinding adjustment.
Available with:
• Manual switch
• Automatic start
• Timer

Technical Features
– Power 250 W
– Grinding Blades Ø 58 mm
– Grinding Balde speed  1400/min (50 Hz) – 1600/ min (60 Hz)
– Hopper capacity 600 g
– Ground-coffee container capacity 280 g
– Dose adjustment 5,5 – 9 g
– Net Weight 10 Kg

Product Range
—————————————————————————
M MD LM – Manual Coffee Grinder  – Blades Ø 58
Single phase  – 230 Volt – 50/60 Hz
M MD LT – Timer Coffee Grinder  – Blades Ø 58
Single phase  – 230 Volt – 50/60 Hz –  Single phase  – 110 Volt – 60 Hz
Single phase  – 110 Volt – 60 Hz – ETL APPROVED
M MD LA – Automatic Coffee Grinder  – Blades Ø 58
Single phase  – 230 Volt – 50/60 Hz –  Single phase  – 110 Volt – 60 Hz
Single phase  – 110 Volt – 60 Hz – ETL APPROVED
M MD LE – Electronic Coffee Grinder  mod. A/B – Blades Ø 58
Single phase  – 230 Volt – 50/60 Hz –  Single phase  – 110 Volt – 60 Hz
Single phase  – 110 Volt – 60 Hz – ETL APPROVED
